MiniJets

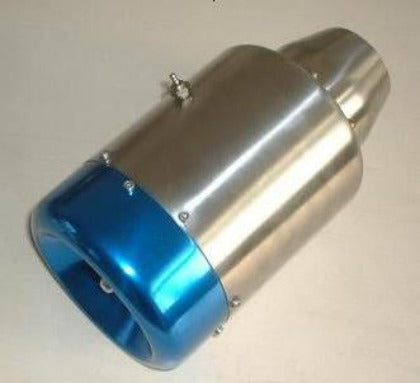

JM14 Jet Turbine Kit

JM14 Jet Turbine Kit

Regular price $1,199.00 USD
Regular price Sale price $1,199.00 USD
Sale Sold out
Shipping calculated at checkout.

JM14 JET TURBINE KIT

JM14 mini jet engine kit is a light jet engine which can produce 14 lbs of thrust. It weighs only 970 grams (2.14 lbs.), which means it has an extremely efficient thrust to weight ratio of 6.54.

This engine boasts sufficient power for use in an RC jet aircraft, and it can be upgraded with a FADEC / AutoStart kit. JM14 is capable of reaching 160,000 RPM. The engine uses kerosene, diesel, or Jet-A, in addition to turbine oil for lubrication. The turbine wheel and exhaust nozzle are made of cast inconel, allowing them to withstand higher temperatures. All needed components are available. You just need to bring your tools

  • Optimized 3.54" (90mm) wide and 9.05" (230 mm) long design.
  • Low-fuel consumption
  • High Thrust to Weight ratio
  • Fast acceleration
  • Easy build
  • Available accessories for installation and operation.


ENGINE BUILD GUIDE

JM14 Build Guide


TECHNICAL SPECIFICATIONS


Imperial

Metric

Max Thrust

14 lbs

6.3 Kg

Nominal EGT

1256 F

680 C

Idle RPM

42000 rpm

Max RPM

160000 rpm

Fuel consumption

7 oz/min

200 ml/min

Lubricant

Turbine oil 3%-5%

Fuel

Jet-A, Kerosene

Length

9"

230 mm

Diameter

3.54"

90 mm

Weight

2.14 lbs

970 g
