Members JM30 30Lb Thrust Mini Jet Engine Kit

Members JM30 30Lb Thrust Mini Jet Engine Kit

Regular price $1,599.00 USD
Regular price Sale price $1,599.00 USD
Sale Sold out
Shipping calculated at checkout.

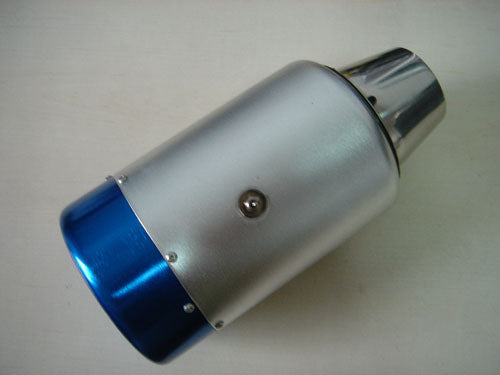

JM 30 MINIJET ENGINE KIT

This is a JM30 mini jet engine in kit form. Max Thrust: 30 lbs. Ready to be assembled by you. Ready to build stage and manual start. A Fadec system can be added for auto start capabilities.

 Bearings and Rear nozzle are included. Contains everything needed.

Build Guide can be downloaded HERE.

This Unit Can Be Upgraded to Auto Start. Using This Kit HERE.

A much bigger and more powerful engine capable of producing 30 lbs or 133.50 Newtons of maximum thrust at 120000 rpms. JM 30 comprises of an axial compressor wheel, turbine wheel and pre-built combustor. The engine uses kerosene/diesel or Jet-A and Turbine oil 3%-5% for lubrication. The engine contains hybrid ceramic bearings which are made from stainless steel and ceramic. The nozzle guide vanes are casted with Inconel alloys which can hold high nominal Exhaust Gas Temperatures. Aluminum parts are milled from a 5-axis CNC machine controlled by a 3D digital AutoCAD design.

  • AutoStart capable minijet
  • CFD optimized, 3D AutoCAD designed engine
  • Optimized 4.33" (110mm) diameter and 11.81" (300 mm) long design
  • Standard bullet start, external AutoStart using cowl
  • Low-fuel consumption: 420ml/min
  • High Thrust to Weight ratio: 8.148
  • Fast acceleration
  • Easy build-up

JM30

Imperial Metric
Max Thrust 30 lbs   13.6 Kg
Nominal EGT 1346 F 730 C
Idle RPM 32000 rpm
Max RPM 115000 rpm
Fuel comsumption 15 oz/min 420 ml/min
Lubricant Turbine oil 3%-5%
Fuel Jet-A, Kerosene
Length 11.81" 300 mm
Diameter 4.33" 110 mm
Weight 3.68 lbs 1670 g

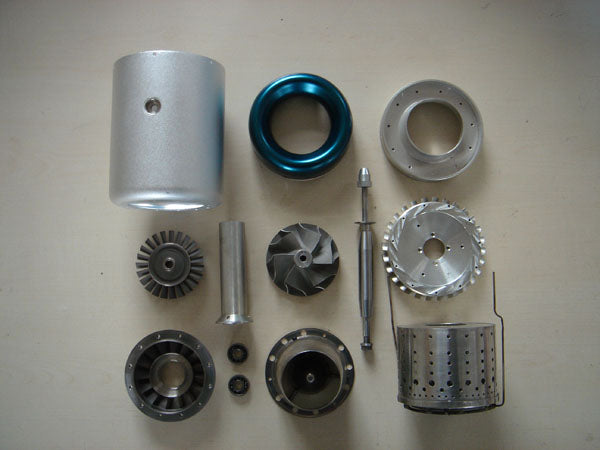

 Included in this Kit:

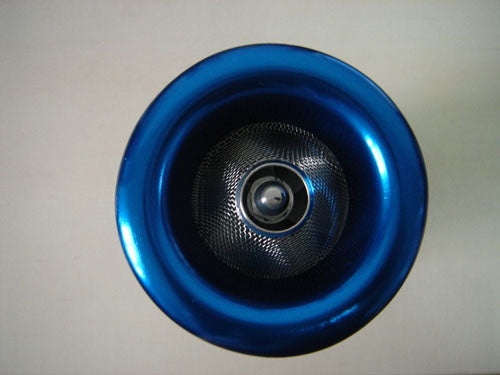

Intake cover

Intake Nozzle

Diffuser

Hybrid Ceramic Bearings

Exhaust Nozzle

Pre built combustor

NGV

Turbine wheel

Compressor wheel

Axle Shaft

Axle Hub

Bearings

Spacers

Screws

All JM30 mini jet engine parts included to complete the build.
