KP35 Mini Jet Engine Cad Files, Blueprints, Renderings.

Download Links To 15 Files Emailed Immediately Upon Purchasing.

This digital product contains the KP35 mini jet engine CAD rough draft design files in multiple extensions as well as Pictures, Video Links, digital renderings, blue prints, and parts sourcing information to help you design and build as many KP35 Mini Jet Engines as you'd like.

    Start Your KP35 CAD Journey

    What You'll Learn

    • Aerospace Principles

      Learn Aerospace engineering from scratch manufacturing to building your final product. This is the ultimate learning path where you get the full knowledge of building a jet engine

      ✅ Parts manufacturing

      ✅ CNC machining

      ✅ + All knowledge provided by MP35 Kit

    • Technical Skills

      Develop practical engineering skills that apply across multiple disciplines.

      ✅ Precision measurement
      ✅ Material properties
      ✅ Manufacturing & Fabrication techniques
      ✅ CAD file manipulation
      ✅ Testing methodologies

    • Real-World Applications

      Get experience of both mechanical manufacturing and aerospace engineering.

      ✅ Designing a jet engine
      ✅ Manufacturing a jet engine
      ✅ Building & assembly techniques
      ✅ Systems integration
      ✅ Safety protocols

    1 3

    Your Building Journey

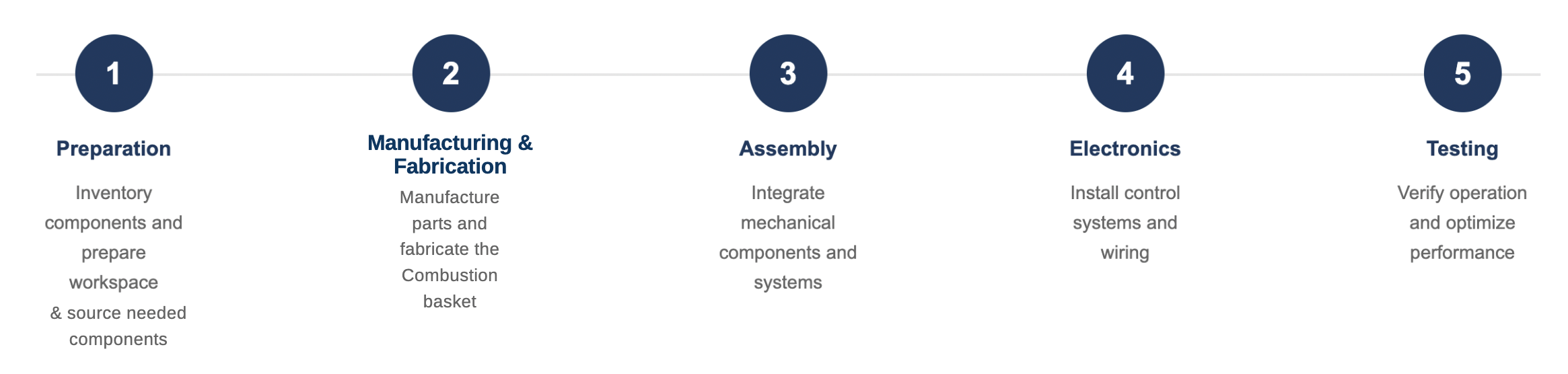

    • Estimated Time Commitment

      KP35 typically requires 10-15 hours manufacturing + 10-15 hours to build the engine, spread over 10-14 weeks for most builders. The pace is flexible and can be adjusted to your schedule, machines availability, raw material sourcing time, and experience level.

    • Skill Development

      As you progress through the manufacturing & build, you'll develop increasingly advanced skills. Each stage builds upon previous knowledge, creating a comprehensive learning experience.

    • Support Resources

      Throughout your journey, you'll have access to detailed instructions, video tutorials, our active community forum, and direct technical support from our team.
    Start Your KP35 CAD Journey

    Technical Specifications

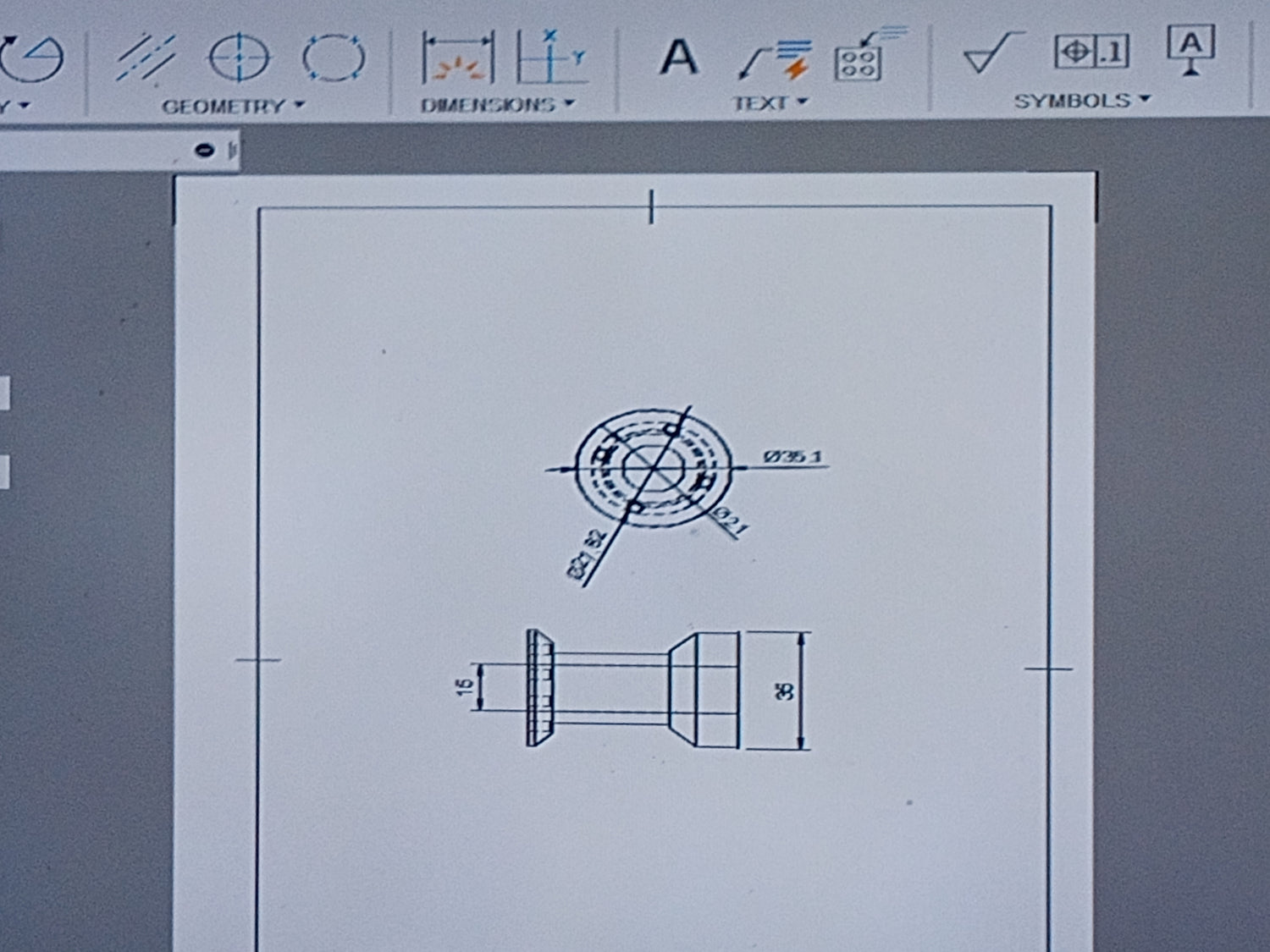

    All CAD files are created using Fusion360 but are compatible with other programs.

    These part files are in rough draft form and require finalizing of fitment. We do this so you can educate yourself with cad design and part manipulation.

    Videos and tutorials and Information regarding tools needed for the KP35 complete build are available in the MiniJets Community.

    Deliverables

    This digital product includes rough draft downloads for KP35 Mini Jet Engine:

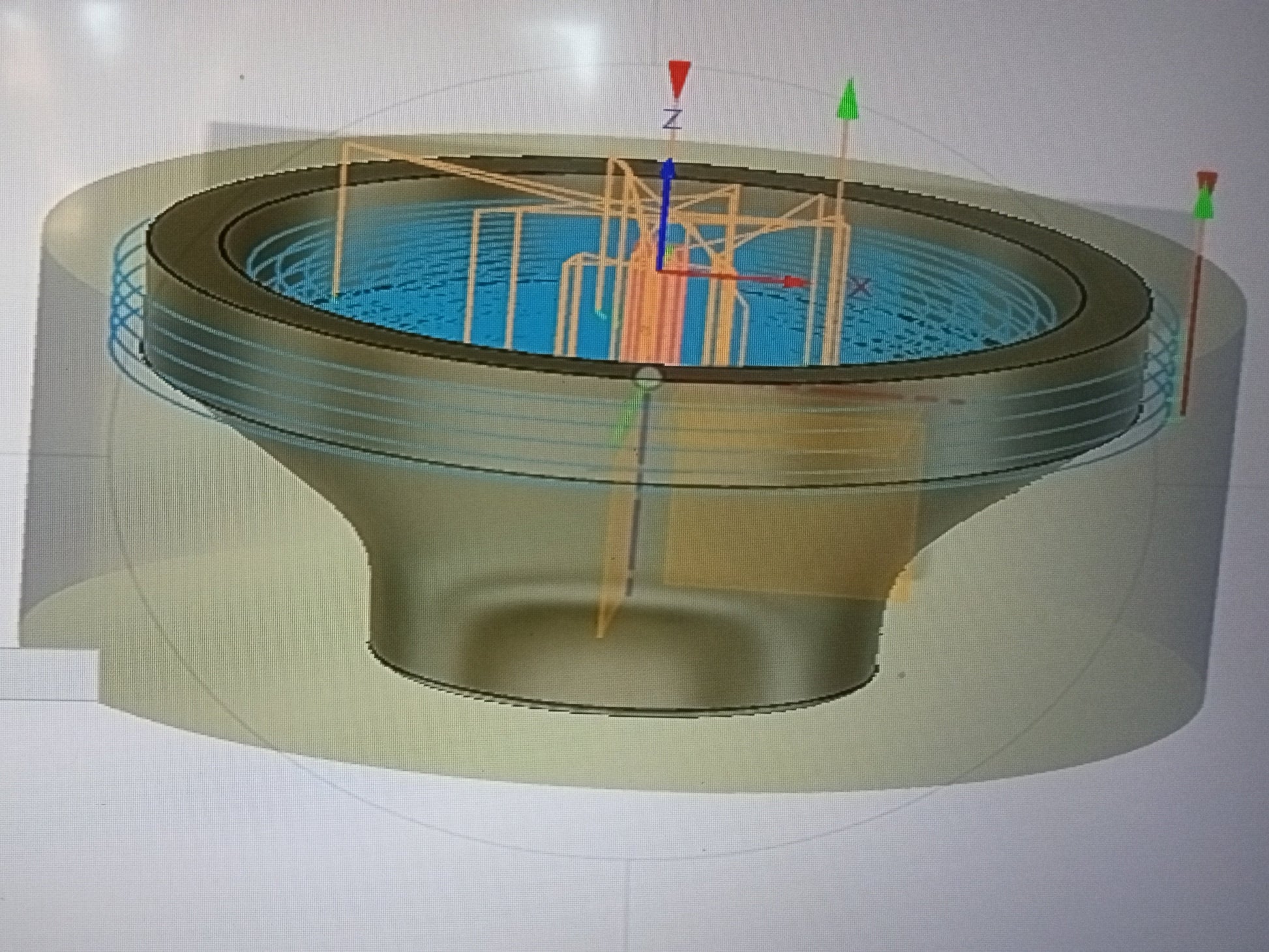

    • Front Nozzle CAD and Print
    • Diffuser CAD and Print
    • Axle Hub CAD and Print
    • Nozzle Guide Vanes CAD and Print
    • Outer Shell CAD and Print
    • Final Build Guide

    Downloadable CAD Files Default Format:

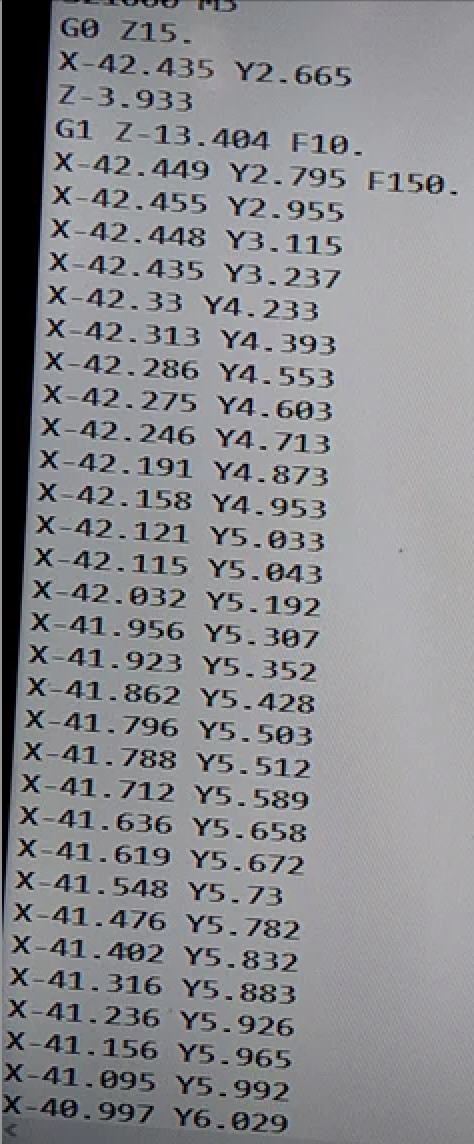

    • STEP (. step)
    • STL (. stl)
    • PDF (.pdf)
    • Other File Types are Available Upon Request

    Community:

    • 1 month subscription included

    Not included:

    • KP35 Bearing CAD
    • Turbine wheel CAD
    • Compressor wheel CAD
    • Fuel and vapor tubes CAD
    • Raw material

    Required tools (Not included):

    • CAD sotware
    • CNC
    • Safety equipment
    • Drill and drill bits
    • TIG welder (for combustion chamber)
    • Bench vise
    • Small files and deburring tools
    Buy KP35 CAD Now !

    FAQ

    Since the CAD files are rough, will I make mistakes through my learning journey?

    Yes, you will make a lot of mistakes, and sometimes you will have to redo the whole part. The more mistakes you make, the more you'll learn. Consider 30% additional budget

    Why some parts are not included?

    Some parts, like bearings, tubes, and compressor wheels are need molding or vary expansive building infrastructure. We recognize the difficulty of the CAD journey and we offer special discount on those parts for you

    Do I need to have CNC machines?

    We highly recommend that, but you can also succeed if you have access to a CNC machining facility

    Where do I get the raw material?

    • From scrap metals in your shop
    • From your local stores
    • From the Internet

    How do I access the MiniJets community?

    community.minijetengine.com

    You will have 60 days free subsciption

    1 1

    KP35 CAD

    KP35 CAD

    $40.00 AUD
    $40.00 AUD
    Sale Sold out
    Shipping calculated at checkout.
    View full details
