MiniJets

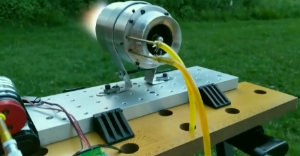

JM50 Mini Jet Kit 13lbs Thrust

JM50 Mini Jet Kit 13lbs Thrust

Regular price $1,366.00 CAD
Regular price Sale price $1,366.00 CAD
Sale Sold out
Shipping calculated at checkout.

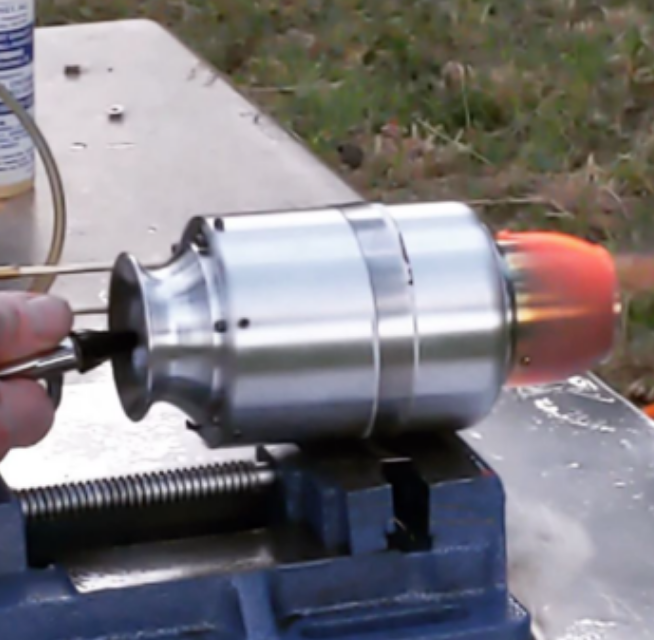

JM50 MINI JET ENGINE KIT

An annular combustion basket vapor tube fuel injection enables high exothermic controlled combustion.  JM 50 is a low weight engine (1043 g or 2.3 lbs.) and can produce 57 N of thrust (or 13 lbs). The nozzle is designed to fit the width of engine which is milled from 5-axis CNC machine controlled by a 3D digital AutoCAD design.

This kit includes pre-rolled combustor and fuel manifold parts ready for assembly. Comes with everything you need to build a self-sustaining mini jet engine.

  • 3D AutoCAD designed engine.
  • Highly compact 3.25" (83mm) wide and 6.5" (165mm) long design.
  • Standard propane start, external fuel control.
  • Low-fuel consumption.
  • High Thrust to Weight ratio.
  • Fast acceleration.



ENGINE BUILD GUIDE

JM50 Build Guide



TECHNICAL SPECIFICATIONS

Imperial

Metric

Max Thrust

13 lbs

5.8 Kg

Nominal EGT

750 F

388 C

Idle RPM

32,000 rpm

Max RPM

115,000 rpm

Fuel consumption

8 oz/min

227 ml/min

Lubricant

Turbine oil 3%-5%

Fuel

Jet-A, Kerosene

Length

6.5"

165 mm

Diameter

3.27"

83 mm

Weight

2.3 lbs

1,043 g
