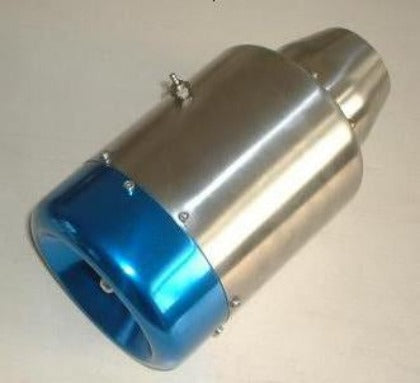

JM14 Jet Turbine Kit

This is a JM14 mini jet engine in kit form. Ready to be assembled by you. Exactly like the ready to run JM14 but in a ready to build stage and manual start. A Fadec system can be added for auto start capabilities.

 Bearings and Rear nozzle are included. Contains everything needed.

Build Guide can be downloaded HERE.

This Unit Can Be Upgraded to Auto Start. Using This Kit HERE.

JM14

     Length : 230 mm
     Diameter :90mm
     Weight: 970grams
     Nominal EGT :680Deg C
     Idle RPM: 42000
     Max RPM: 160000
     Fuel Jet-A, Kerosene
     Lubricant Turbine oil 3%-5%

Fuel comsumption: 200ml/min
Max Thrust: 14 lbs

 Included in this Kit:

Intake cover

Intake Nozzle

Diffuser

Hybrid Ceramic Bearings

Exhaust Nozzle

Pre built combustor

NGV

Turbine wheel

Compressor wheel

Axle Shaft

Axle Hub

Bearings

Spacers

Screws

Fuel Fittings

All JM-14 mini jet engine parts needed to complete the build.
